Bosch Repair Service Kit BDU2XX

Spare parts kit for repair of second-generation drive unit, for eliminating damage to the right-side bottom bracket.

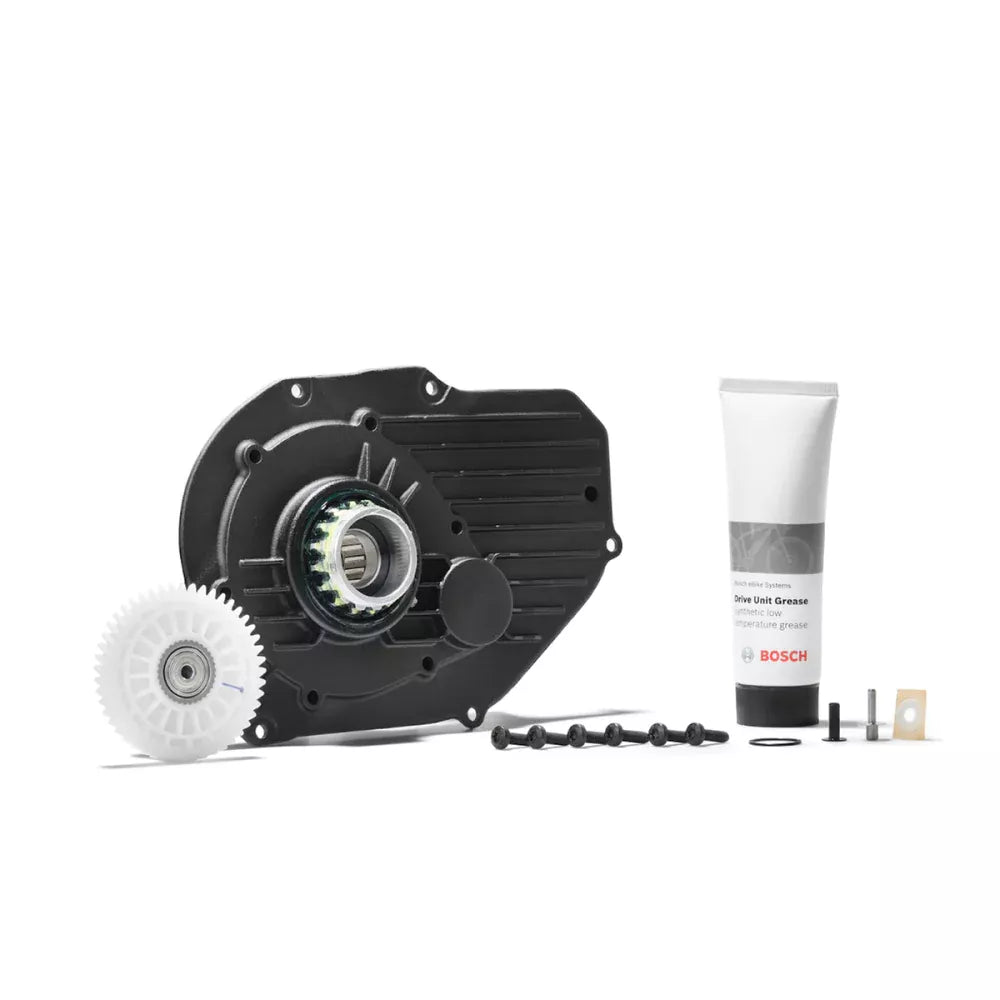

Contains: Cover with gasket, bearing and freewheel, drive gear, gear grease, cover screws, bearing pin with rubber bushing and protection disc, and repair instructions.

The bearing with bearing protection ring and bearing grease comes pre-assembled.

The drive unit must not be repaired if any of the following apply:

The drive unit has parts with one of the following numbers:

• 0 275 007 020
• 0 275 007 021
• 0 275 007 022
• 0 275 007 023
• 0 275 007 024
• 0 275 007 025
• If the e-bike has a back-pedal brake.

Must not be used if the bike has a current warranty.
